discus

Discus is an 8-bit CPU built from discrete transistors. Currently it runs in simulation, integrated into a system with RAM and ROM.

Overview

Discus is a pure 8-bit Harvard architecture, with 8-bit code and data addresses, and a four entry stack. There are four general purpose registers, one of which is the accumulator. It uses a 2.5 stage RISC pipeline (opcode fetch/branch, instruction execute, and writeback). There is integrated DRAM refresh. The CPU totals 1126 transistors. Without the pipelining and DRAM refresh the count would be under 1000.

The instruction set is minimalist but functional. All instructions are a single byte and execution is strict single cycle throughput. Constant values and some memory accesses are implemented via prefix instructions. The prefixes are separate instructions, but leave their result in a “hidden” register K that is implicitly accessed by the following instruction.

Instructions with two operands have the accumulator as one operand and the destination. Single operand instructions (INC, DEC, MOV, LOADM) can use any registers as their source and destination.

The instruction set is RISC style load/store. Arithmetic instructions are register-to-register. Memory reads are either LOADM (to a named register), or MEM (prefix loading to hidden register). STA is the only memory write instruction.

Branch (jump, call, return) instructions are executed in the first pipeline stage. All branches may be conditional. There are no indirect branches, and no data access to the stack—it is not possible to branch to a computed address.

An earlier version of the instruction set is implemented in verilog and ran 64-bit Miller-Rabin primality testing on an FPGA. This application drives some of the design decisions. For example, using the hidden register K for prefixes rather than a general purpose register, is because of the register pressure in that code.

Circuitry Overview

The bulk of the implementation is in NMOS logic, with N-channel MOSFET switches and 2.49kΩ load resistors, giving a 1mA current per logic gate at 2.5V. BJTs are used in the register files, both as pass gates, and as low-capacitance interfaces to the sense lines. Gates on the critical paths for performance use 820Ω load resistors, giving 3mA current.

SRAM cells are a mix of 4T2R, 5T3R and 7T3R depending on the number of ports and drive strength. Each SRAM cell has NMOS or CMOS cross-coupled inverters, and uses BJT pass gates for the read and write ports.

Outside of the register files, flip-flops consist of a 6T3R NMOS latch followed by a SRAM cell. There are minor variants such as using a 5T3R NMOS latch when it is safe for spurious pull-downs on the input.

Arbitrary AOI gates are used as needed, where sensible these are drawn in the circuit diagram by connecting the outputs of open-drain gates together, although there is a couple of discrete monster in instruction decode. Significant use is made of stacked gates, where the output of one gate is used as the ground connection of other gates, essentially forming a wired-or.

Lines needing high fanout or high drive strength—mostly the bus and clock lines—are driven by CMOS outputs. PMOS logic is also used, mostly for 1-of-N decoder trees.

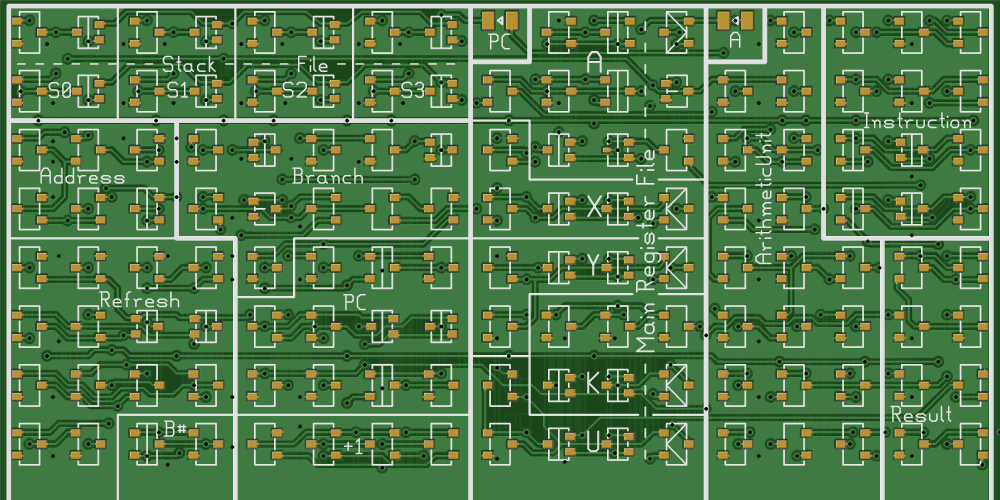

The overall layout is bit-sliced, with the per-bit circuitry laid out on eight identical boards (114 transistors each), and a separate control board (214 transistors).

The bit slice board has the program counter, stack and branch logic on the left, and the instruction execute pipe line stage on the right. The control board contains the status flags and register strobe handling, with the stack pointer and instruction decode in sub-circuits.

Bit slicing does cost some transistors, as some parts of the bit slice are not needed in each bit position. For example the DRAM refresh register is 8-bits wide but only needs to be 6-bits wide, while the lowest bit of the program counter could be simplified.

The CPU core is implemented in static logic with no minimum clock speed. The transistor count could be dramatically reduced by using dynamic logic—using JFET pass-gates and appropriately level shifted clocks. 10T4R edge triggered flip-flops could be replaced by 4T4R circuits, reducing the transistor count of the core by around ⅓.

Registers

The general purpose registers are A, X, Y, U. A is the accumulator, an implicit operand and destination of two argument instructions. Otherwise, all GP registers are interchangeable.

The hidden register is K. The primary usage of this is to contain the result of prefix instructions (constants, MEM prefix and IN). The instruction after a prefix, uses K as the source register, instead of the register encoded in the instruction.

The K register is however written on every clock cycle. For instructions that do not produce an output value, the value is indeterminate.

There are two condition flags, C (carry) and Z (zero). C is stored as a flip-flops in the control board. Z is asserted when the result of the previous instruction was zero; this is implemented as combinatorial logic on the K register. (In the instruction listing below, some instructions are listed as writing Z. In reality, this is just a reminder that a useful value is left in K for a conditional branch to zero-test.)

There is an 8-bit program counter, and two bit stack pointer. The four entry stack is implemented as a register file in the CPU, 128 transisters for storing 4 bytes, plus 38 for interfacing to the register file.

The DRAM refresh control contains an 8-bit counter. Instructions that do not access memory, drive the counter onto the address bus and increment the counter.

Instruction Set & Encoding

Source Register (......RR)

The last two bits of (nearly all) instructions identify a source register. Values of RR are:

The CONST, MEM and IN prefix instructions write the K register, and then the decode of the subsequent instruction is overriden to read K instead of using the instruction bits.

Destination Register (11DD..RR)

Instructions with an explicit destination register put the register number in bits 4 and 5. The encoding is the same as the source register.

Condition Codes (...CCC..)

Branch instructions put the condition in bits 2, 3, 4. The encoding is:

CONST prefix : 00nnnnnn

This instruction writes K with an 8-bit constant. The lower 6 bits are taken from the opcode, while the high two bits are “stolen” from bits 0 and 1 of the following instruction. Because of the pipelining, those bits are available when CONST executes.

The CONST instruction is not usually written explicitly in assembly code—instead, it is generated automatically when a numeric constant operand is used.

JUMP, CALL : 00LCCCnn

These share the opcode encoding of the CONST instruction. They are distinguished by disallowing two successive CONST instructions. Instead, immediately following a CONST instruction, a jump is decoded in preference, with the CONST providing the target address for the jump. The L bit is 0 for a JUMP and 1 for a CALL.

All branches have a condition code; see above for the enumeration of the CCC values.

The target address is given by the CONST prefix (6 bits from the CONST and 2 bits from the jump or call. Note that the circuitry can’t use the K register though—the branch instruction happens in the wrong pipeline stage. Instead, when the branch is handled, the prefix can be found in the register holding the instruction for the execute pipeline stage.

RET : 010CCC..

Pops the PC from the stack, if the condition passes. The operand is ignored.

This opcode is processed in the first stage of the pipeline, but uses the condition flags set in the second stage. This means that the condition flag for the return is evaluated before an update by the immediately preceding instruction, a hazard to be aware of.

(JUMP and CALL have the same quirk, but for those instructions, it is a feature not a problem—for those, we want to ignore the preceeding CONST prefix in evaluationing the condition flags.)

OUT : 01100000

OUT instruction. This does nothing, but pulses a strobe. External peripherals may use the values from the accumulator bus.

Not all bits are decoded; 0x40 to 0x47 are aliases.

STA : 011011rr

Store the acumulator to memory. The operand is the memory address to write. The operand is placed on the B bus and external memory strobes are driven.

INP prefix : 01110000

Load K from the external result bus Q (the bus is open-drain). The accumulator bus may be used by external circuitry, and the IN strobe line is asserted.

Not all bits are decoded; 0x50 to 0x57 are aliases. In assembly, this can be written as an IN operand to the prefixed instruction, e.g., LOAD A,IN instead of INP, LOAD A,….

MEM prefix : 011111rr

Load the K register from memory. The operand is the memory address.

The MEM prefix is typically not written explicitly in assembly code. Instead, square brackets are placed around the operand. E.g., ADD [U] instead of MEM U,ADD ….

Note that with a MEM prefix, the operand bits of the following instruction are ignored.

Arithmetic : 100aaarr

Perform an arithmetic operation on the accumulator and operand, writing the result to the accumlator and updating the Z and C flags.

The encoding of aaa is:

ADD(A) and ADC(A) instructions give left shift and (9-bit) rotate. There are no right shift instructions.

A subtract-with-carry operation is implemented as A + not B + C, which determines the polarity of the C flag for subtractions. (Subtract-with-out carry forces the input C to 1).

Tests: arithmetic, ignore result : 101aaarr

Identical to the previous arithmetic instruction above, but only the Z and C flags are updated; the result is not written to A.

The most useful cases are CMP (101001rr), analogous to SUB, and TST (101011rr), analogous to AND.

INC : 11dd00rr

Write the operand plus one into the destination, and update Z. The C flag is not changed.

DEC : 11dd01rr

Write the operand minus one into the destination, and update Z. The C flags is not changed.

LOAD : 11dd10rr

Write the operand into the destination. C is unchanged.

LOADM : 11dd11rr

Load the destination register from memory. The operand is the memory address. C is unchanged. This is written as LOAD with square brackets around the operand.

This is a convenience, as an alternative to the two byte MEM,LOAD, which would achieve the same result, but taking an extra byte.

Processor Buses

There are several buses:

Internally, there is also the I bus, carrying the instruction currently in execute. The J and K buses are looped to lines on the O and I buses to give respectively the jump target and CONST value.

Arithmetic Unit

The arithmetic unit is essentially a ripple-carry adder, with an optional inverter on one operand. The two inputs are A and B. The A input is usually the accumulator. The B input is the operand register encoded in the instruction, and has an optional inverter.

Logical operations are implemented by disabling appropriate parts of the adder and carry chain. E.g.,

This is visible in logic operations setting the carry flag to fixed values, so that AND(A) and OR(A) can be used as carry-set and carry-clear instructions.

Increment and decrement instructions are implemented by forcing the A input to be all-zeros or all-ones, and forcing the carry chain input oppositely.

The per-bit transistor count is 20 transistors per bit, including the output-enable driving the Q bus. Decoding the instruction to produce the control stobes for the ALU takes 45 transistors.

The ripple carry uses two gate levels per bit. To reduce the propagation delay through the carry chain, 820Ω pull-ups are used, rather than the 2.49kΩ used elsewhere. One gate level per bit could be achieved by dualizing every second ALU bit, saving a transistor and improving performance. Pragmatically, keeping each bit identical is preferable.

Register File

The main register file consists of the four architectural registers A, X, Y, U, the hidden register K, and the refresh counter R. The register file is dual ported, with separate read and write ports.

The accumulator A also outputs directly to a bus. Four of the registers are 5T2R NMOS SRAM cells, while the accumulator is a 7T2R CMOS SRAM cell, to give high drive strength for the A bus.

The read port provides only weak access from the bit-line to the SRAM cell, so that precharge is not necessary. Writes are latched in a separate latch during the execute stage, and written back to the register file in the first half of the following clock cycle; hence the nominal 2.5 stage pipeline.

The write-back occurs simultaneously with decode logic of the execute stage of the following instruction. This keeps the write-back off the critical path for the cycle time—the write-back is complete by the time the read strobes for the next instruction have settled.

Program Counter and Stack

There is a D flip-flop per bit for the program counter, and a ripple-carry chain for incrementing it, followed by muxes to integrate with the stack and implement branch instructions. Like the accumulator, the PC has CMOS outputs, as it directly drives the address bus for instruction fetch.

The carry-chain is two gate-levels per bit, like the ALU carry-chain. Due to the simpler surrounding logic, it is well away from the critical-path: dualizing alternating bits would save a transistor per bit, but make no difference to performance.

The program counter is closely coupled to the stack. This is an integrated four-entry stack, with a Gray-coded stack pointer. There is no access to the stack or stack-pointer other than via CALL/RET instructions.

The stack storage is implemented as a four byte register file, using single ported 4T2R SRAM cells.

To give strobe lines time to settle, we only access the stack during the second half of each clock cycle. The output path from the stack into the PC is short, so this is not critical for the clock cycle time. Because of this, the opcode fetch, and decode of branch instructions, must be complete in the first half of the clock cycle.

At first sight, it appears to be an exhorbitent expenditure of transistors in the CPU core to integrate the stack. However, the SRAM cells for this only total 16 transistors on each bit-slice, competitive with the transistor count of muxing stack operations onto the data memory bus and the consequent coordination overheads.

Reset

There is an external reset input. This must be asserted for at least two clock cycles to reset the processor. Reset jumps to address 0, but otherwise does not change processor state.

The opcode bus is open-drain. Reset is implemented by pulling down the opcode bus, giving continuous 00000000 instructions.

Normally this would alternate CONST prefix and JUMP-always instructions, jumping to address 0, reseting the program counter. To make sure the exit from reset always leaves the instruction decode in the correct state, while in reset, the decode is modified so that the jump to zero takes place on every clock cycle.

The above takes no transistors to implement! There is a 11 transistor flip-flop synchronising with the clock, the combinatorial logic for reset is implemented by using the flip-flop output as gated power to appropriate circuits. (Scanning the input timing with spice, a single flip-flop stage appeared to give adequate protection against metastability).

Clocking

A two phase clock is used, generated from a single phase clock input. The main clock is ϕ, the main CPU flip-flops are positive edge triggered. The main register file combined with the preceeding latch again gives positive edge-triggered behaviour.

The clock drive is a CMOS flip-flop producing two out of phase clocks, ϕ and ϕ1. The flip-flop produces output duty cycles of slightly less than 50%, with non-overlapping clock pulses: the falling edge of one clock is before the rising edge the other.

The secondary clock ϕ1 is used for strobing writes to the stack and DRAM. The non-overlapping clock phases give some extra timing margin on stack and register operations.

Main Memory

As well as the CPU, there is memory… DRAM is implemented as arrays of 1T1C cells, consisting of a discrete capacitor and a JFET transistor pass gate. A 32-byte DRAM board takes 256 JFETs and 256 capacitors for storage, plus 148 transistors for the decode, sense logic and I/O.

Every clock cycle, the byte addressed by the address lines is (re-)written, irregardless of whether a memory access is in progress. This achieves memory refresh. There is an extra register containing a refresh counter. During a jump (or call) instruction, the otherwise unused ALU increments the refresh counter. As a side-effect, the refresh register appears on the address bus, performing refresh.

We use JFETs as the pass gates. This requires a nominal -5V supply for the gate drive.

Typical DRAM uses differential bit-lines and sense circuitry. Because of the compromises of using discrete components, we make do with single-ended circuitry.

Careful timing of the various strobes is necessary. All are kept idle during the first half of the clock cycle, giving the address and control lines time to stabilize. During this time, the sense amp provides negative feedback, pre-charging the sense circuit.

The appropriate bit line is enabled at the start of the second half of the clock cycle. Then the sense amp output and positive feedback are enabled around 100ns later. Because memory reads always go directly into a register, the reduced time available from the half clock cycle is not a concern.

Program storage is intended to be implemented as ROM, so there is no DRAM refresh or precharge timing allowance on the program memory bus. Opcode fetch is not critical path for performance. While branches are executed in the same clock cycle as opcode fetch, the logic for those is much simpler and shorter than the main execution pipeline stage.
